JNV-MWM-012-01

Description

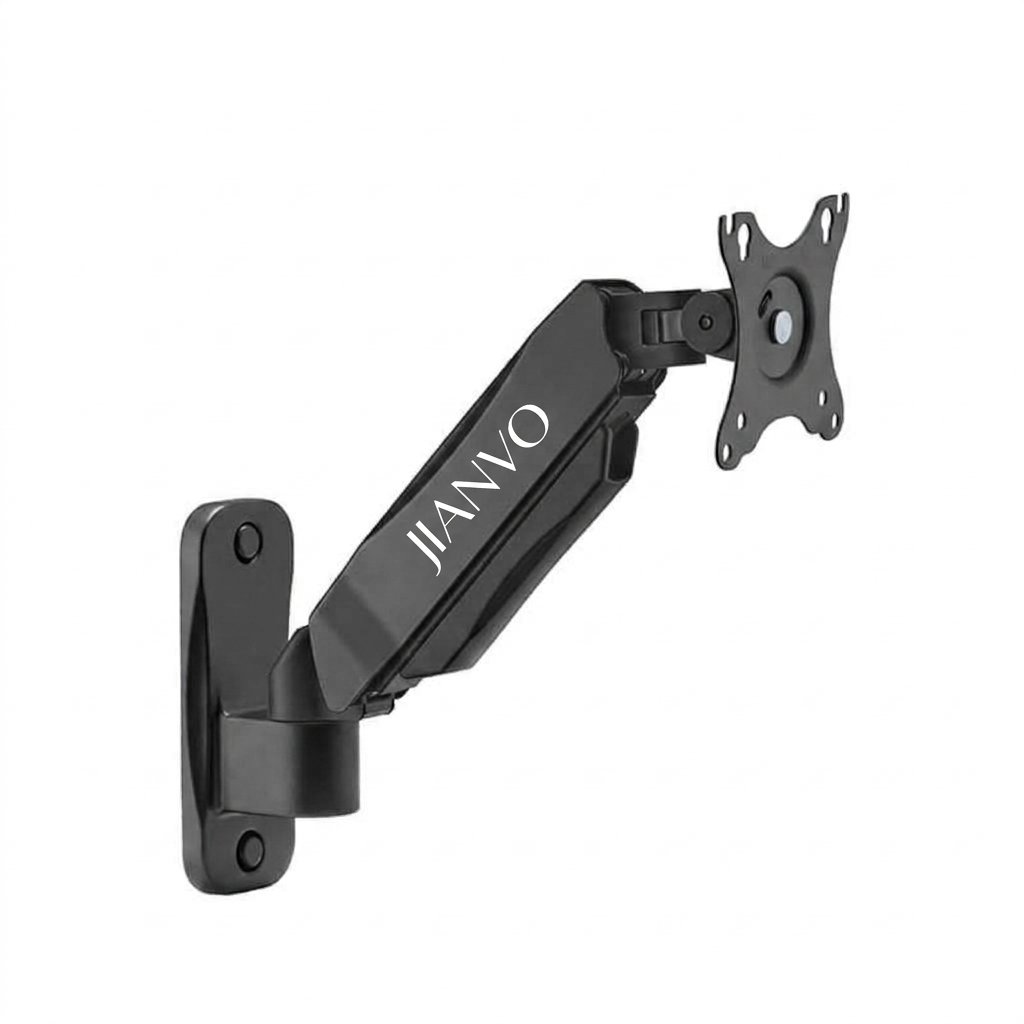

Wall-Mounted Spring Monitor Arm

Family: Arms & Mounts    Category: Monitor Wall Mounts    Color: Matte Black

Position one monitor above your desk without a desktop base or clamp. A mechanical spring supports everyday screen adjustment, while the wall connection keeps the work surface available for other tasks.



Is This Right for You

For a workstation near a suitable wall where screen positioning and a clear desktop matter. Choose the fixing height carefully: the arm provides adjustment around its wall attachment, so the installation position must suit your desk and seated viewing height.



Key Benefits

• Wall mounting leaves the desk edge and work surface free of a support base.
• Adjustable spring tension balances a compatible monitor for repositioning.
• Tilt, swivel and screen rotation help set the viewing angle; integrated cable guides keep leads close to the arm.



Compatibility and Installation

Fits one 17–32 inch monitor weighing 2–9 kg without its original stand, with VESA 75 × 75 or 100 × 100 mm. Check the monitor’s screw requirements, wall construction, fixing suitability and space behind the screen before ordering.



Specifications and Adjustment

Specification	Details
Screen / load	One 17–32 inch screen; 2–9 kg
VESA mounting	75 × 75 or 100 × 100 mm
Mount / mechanism	Wall mounted; mechanical spring assistance
Screen movement	Tilt +90° / −45°; swivel ±90°; rotation ±180°
Wall profile	101–391 mm; distance from wall to mounting plane
Overall dimensions	117 × 326 × 329 mm
Construction / finish	Steel, aluminum and plastic; powder-coated matte black



Materials and Construction

Steel, aluminum and plastic form the mounting structure, moving arm and covers. The metal surfaces have a powder-coated finish. A spring-tension mechanism balances the screen, while cable guides organize the leads without requiring them to carry the monitor’s weight.

Setup and Everyday Use

1. Select a suitable structural fixing location and mounting height. Install the wall bracket using the matching guide and fasteners appropriate to the wall construction.
2. Support the monitor while attaching it with suitable VESA screws. Adjust spring tension for the actual screen weight as directed in the guide.
3. Set a readable distance and viewing angle, then route cables with enough slack for movement. Check all fixings and clearances before everyday use.



Limitations

Requires a suitable wall and permanent fixing points. A wall lining alone must not be assumed sufficient. Screens below 2 kg or above 9 kg fall outside the stated balancing range. The wall-profile range is not vertical travel. Screen size, nearby furniture and cable length can reduce usable movement.



Package and Mounting Options

Single-monitor spring arm with wall bracket, VESA mounting plate and cable-management parts. Confirm the supplied hardware and any wall-specific fixings needed for your installation. Monitor and desk are not included.



Installation Guidance and Warranty

Contact Jianvo with your device and installation details for the matching instructions, compatibility guidance and applicable warranty terms.



Bulk Orders and Customization

Request a quote with this Jianvo SKU, quantity, destination and required configuration. Include packaging or branding requirements so availability and lead time can be confirmed.



Frequently Asked Questions

Does it attach to the desk? No. This version fixes to a wall.

Can it support a lightweight screen under 2 kg? That is outside its specified spring-balancing range.

Can I turn the screen to portrait? Yes, if the screen and cables clear the wall, desk and surrounding objects.



Alternative Jianvo Products

These Jianvo options support one monitor but suit different installation positions.

Jianvo product	Shared purpose	When to choose it
JNV-MWM-016-01-B Articulating Wall Monitor Arm Matte Black	Wall mounting with spring-assisted positioning.	Choose it for greater reach: wall profile 101–551 mm, with the same 17–32 inch and 2–9 kg compatibility.
JNV-MAR-001-01-B Single Spring Monitor Arm Matte Black	One screen with spring-assisted adjustment.	Choose desk mounting when a wall fixing is impractical. Fits 17–32 inch screens weighing 2–9 kg; requires a compatible clamp or grommet location.
