Description

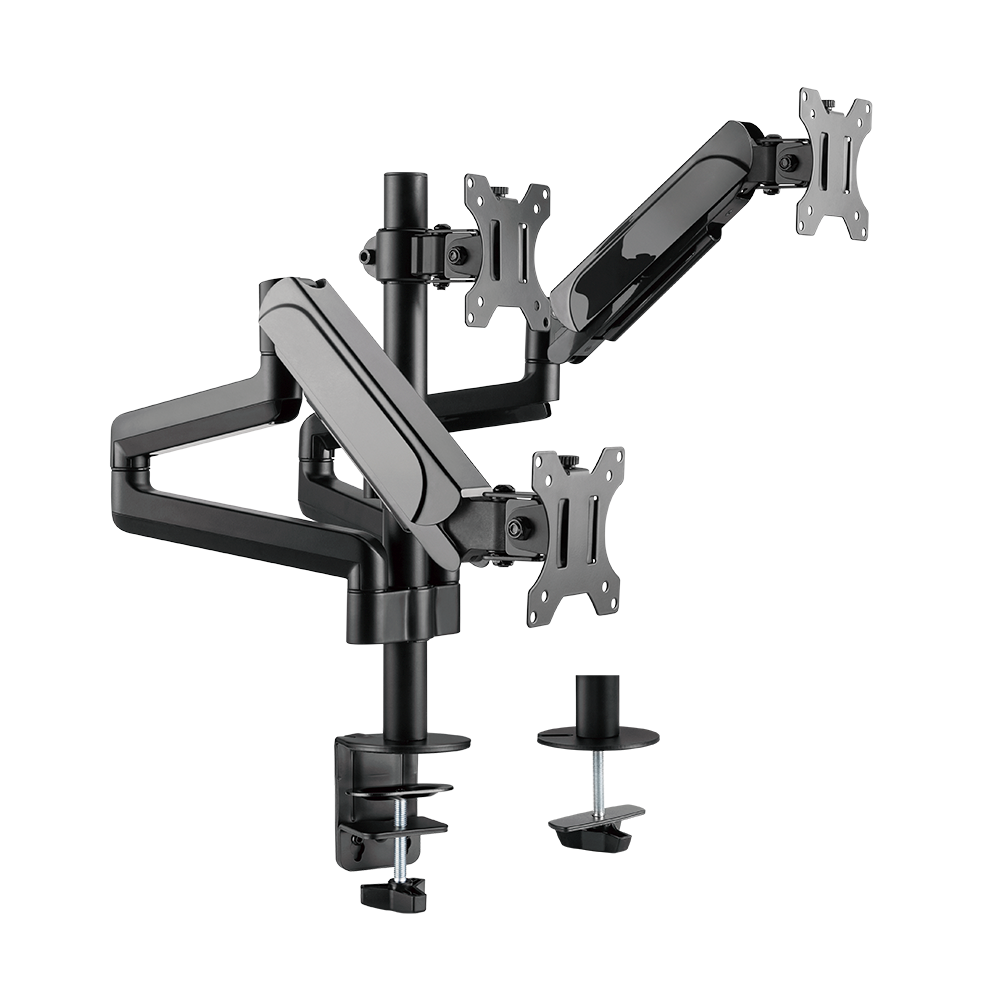

Triple Monitor Spring-Assisted Desk Mount
Family: Arms & Mounts Category: Monitor Arms Color: Matte Black
Arrange three screens around a central working position without three separate monitor bases. Two spring-assisted outer arms flank a manually positioned center support, making this mount useful when reference material and active work need to stay visible together.
Is This Right for You
For a three-monitor workstation used for multitasking, design or monitoring. Plan screen widths and angles before ordering: three compatible diagonals do not guarantee that every desired arrangement will fit.
Key Benefits
- Two outer spring arms allow screen repositioning; the center screen is set manually on the pole.
- One desk mounting point replaces three separate monitor bases.
- Detachable VESA plates simplify assembly, while cable routing helps organize three sets of leads.
Compatibility and Installation
For three 17–27 inch monitors, each weighing 1–7 kg without its stand, with VESA 75 × 75 or 100 × 100 mm. Check desktop strength for the complete loaded assembly, plus space behind and beside the screens.
Specifications and Adjustment
| Specification | Details |
| Screens / load | Three 17–27 inch screens; 1–7 kg per screen |
| VESA mounting | 75 × 75 or 100 × 100 mm |
| Mechanism | Mechanical spring outer arms; manual center support |
| Movement | Tilt ±35°; swivel ±90°; screen rotation ±180° |
| Reach and pole | Maximum arm extension: 703 mm; pole height: 433 mm |
| Desktop thickness | Clamp: 10–85 mm; grommet: 10–40 mm |
| Overall dimensions | 1418 × 161 × 564 mm |
Materials and Construction
Steel, aluminum and plastic construction with a powder-coated matte black finish. The common pole carries the center support and both outer arms; cable guides keep wiring close to the structure.
Setup and Everyday Use
- Choose a sound mounting point and install the clamp or grommet assembly according to the guide. Allow working space around all three screens.
- Attach each monitor using the correct VESA screws. Support the displays during assembly and secure the detachable plates fully.
- Set the center screen height manually, then balance each outer arm for its own monitor. Arrange viewing angles and leave cable slack for movement.
Limitations
The center support does not provide the same spring-assisted movement as the outer arms. The load limit applies to each screen, not to one heavy screen balanced by lighter ones. Wide bezels, curved housings and portrait rotation can restrict positioning. Glass or weak desktops require an approved mounting solution.
Package and Mounting Options
Triple monitor mount with clamp and grommet installation options. Confirm the selected mounting kit and monitor screw requirements when ordering. Monitors and desk are not included.
Installation Guidance and Warranty
Contact Jianvo with your device and installation details for the matching instructions, compatibility guidance and applicable warranty terms.
Bulk Orders and Customization
Request a quote with this Jianvo SKU, quantity, destination and required configuration. Include packaging or branding requirements so availability and lead time can be confirmed.
Frequently Asked Questions
Do all three screens move in the same way? No. The outer arms have spring assistance; the center support is positioned manually.
Can I mount it without drilling? Use the clamp on a suitable 10–85 mm desk edge.
Can I mix different monitor models? Yes, if each meets the load and VESA limits and the full arrangement has enough clearance.
Alternative Jianvo Products
For another three-screen arrangement, combine the two Jianvo mounts below. This requires two suitable desk mounting points.
| Jianvo product | Shared purpose | When to choose it |
| JNV-MAR-007-01-B + JNV-MAR-006-01-B Dual and Single Gas Spring Arms |
Three adjustable screens using two separate mounts. | Choose separate placement and gas spring adjustment for all three screens. Each screen: 17–30 inches, 2–9 kg. Check both clamp requirements. |
