Description

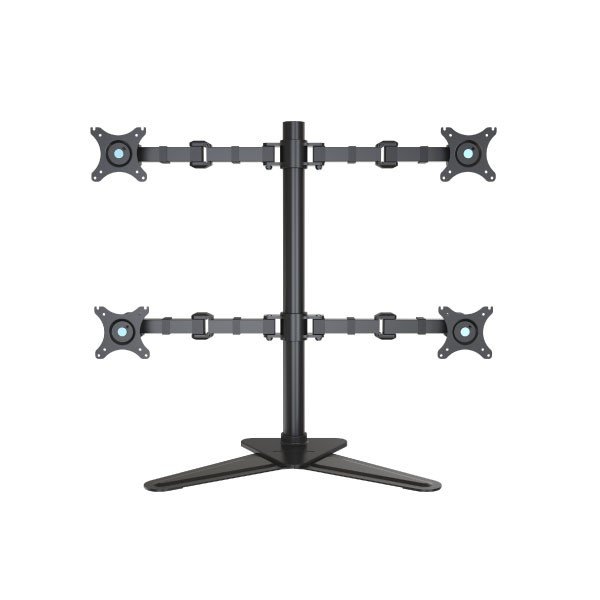

Freestanding Four-Monitor Desk Stand
Family: Arms & Mounts Category: Monitor Stands Color: Black
Keep four displays together in a two-by-two arrangement on one freestanding desk base. Manual height settings and articulated screen supports help align the displays for monitoring, analysis or work that uses several windows at once.
Is This Right for You
For a mostly fixed four-screen workstation on a level, stable desk. Choose this style when a freestanding base is preferred. Allow room for the complete base and check that the upper displays will be comfortable to view.
Key Benefits
- A shared base groups four monitors without a desk-edge clamp.
- Each pair of screens can be set at a chosen pole height and secured with its locking lever.
- Articulated supports, screen rotation and cable clips help align the layout and organize cables.
Compatibility and Installation
Fits four compatible 17–30 inch monitors, each up to 10 kg without its stand, with VESA 75 × 75 or 100 × 100 mm. Check screen widths and heights, base footprint and the desk’s capacity for the complete assembly before ordering.
Specifications and Adjustment
| Specification | Details |
| Screens / load | Four 17–30 inch screens; up to 10 kg per screen |
| VESA mounting | 75 × 75 or 100 × 100 mm |
| Installation | Freestanding desktop base |
| Height setting | Manual positioning of each screen pair; lever locking |
| Screen movement | Tilt −85° / +15°; swivel ±90°; rotation 360° |
| Main construction | Aluminum and plastic; black finish |
| Cable organization | Cable retaining clips on the supports |
Materials and Construction
Aluminum and plastic construction with a multi-foot desktop base. The assembly guide specifies anti-slip pads below the base. Manual locking levers secure the screen-support assemblies on the upright.
Setup and Everyday Use
- Assemble the base and fit its anti-slip pads on a level desk. Secure the upright and screen supports, checking that the height-locking levers are engaged.
- Install the monitors in the balanced sequence shown in the assembly guide. Use VESA screws of the correct size and depth; support the structure during loading.
- Align each screen and route cables through the clips with sufficient slack. Check stability and all locks before use or after changing the arrangement.
Limitations
Do not install both monitors on one side first: uneven loading can tip the stand. Keep the complete base supported and away from a desk edge. Large housings and mixed screen sizes can limit alignment or rotation. This is a manual stand, so major height changes require supporting the screens and resetting the locks.
Package and Mounting Options
Freestanding four-monitor stand with desktop base, screen supports, anti-slip pads and cable clips. Check monitor screw requirements against the supplied hardware. Monitors and desk are not included.
Installation Guidance and Warranty
Contact Jianvo with your device and installation details for the matching instructions, compatibility guidance and applicable warranty terms.
Bulk Orders and Customization
Request a quote with this Jianvo SKU, quantity, destination and required configuration. Include packaging or branding requirements so availability and lead time can be confirmed.
Frequently Asked Questions
Do I need to drill the desk? No. The freestanding base rests on a suitable desktop.
Can all four screens move in height independently? The two screen pairs are positioned on the pole; each screen also has its own angle and orientation adjustments.
Can I use four different monitors? Only after checking individual weights, mounting compatibility, overall fit and balanced loading.
Alternative Jianvo Products
Compare these four-screen solutions. Confirm the display weights, layout and desk requirements before switching.
| Jianvo product | Shared purpose | When to choose it |
| JNV-MAR-010-01 Four-Monitor Desk Arm Black |
Four monitors on one central support. | Choose a desk-clamped assembly to free the area occupied by the freestanding base. Confirm load and clamp compatibility for your setup. |
| 2 × JNV-MAR-004-01 Dual Monitor Desk Arm Black |
Four screens with manual positioning. | Choose two clamp-mounted assemblies instead of a freestanding base. Each supports two 17–30 inch screens up to 10 kg each; clamp fits 20–100 mm desktops. |
